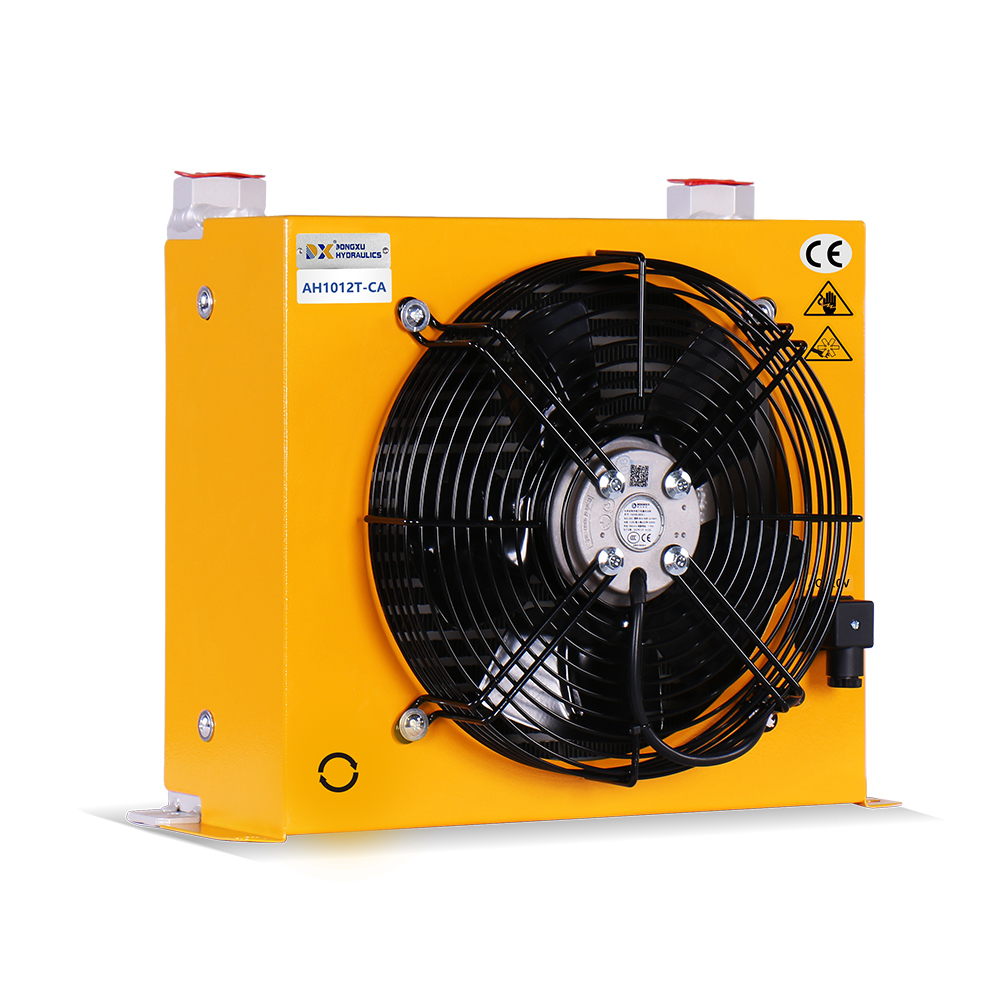

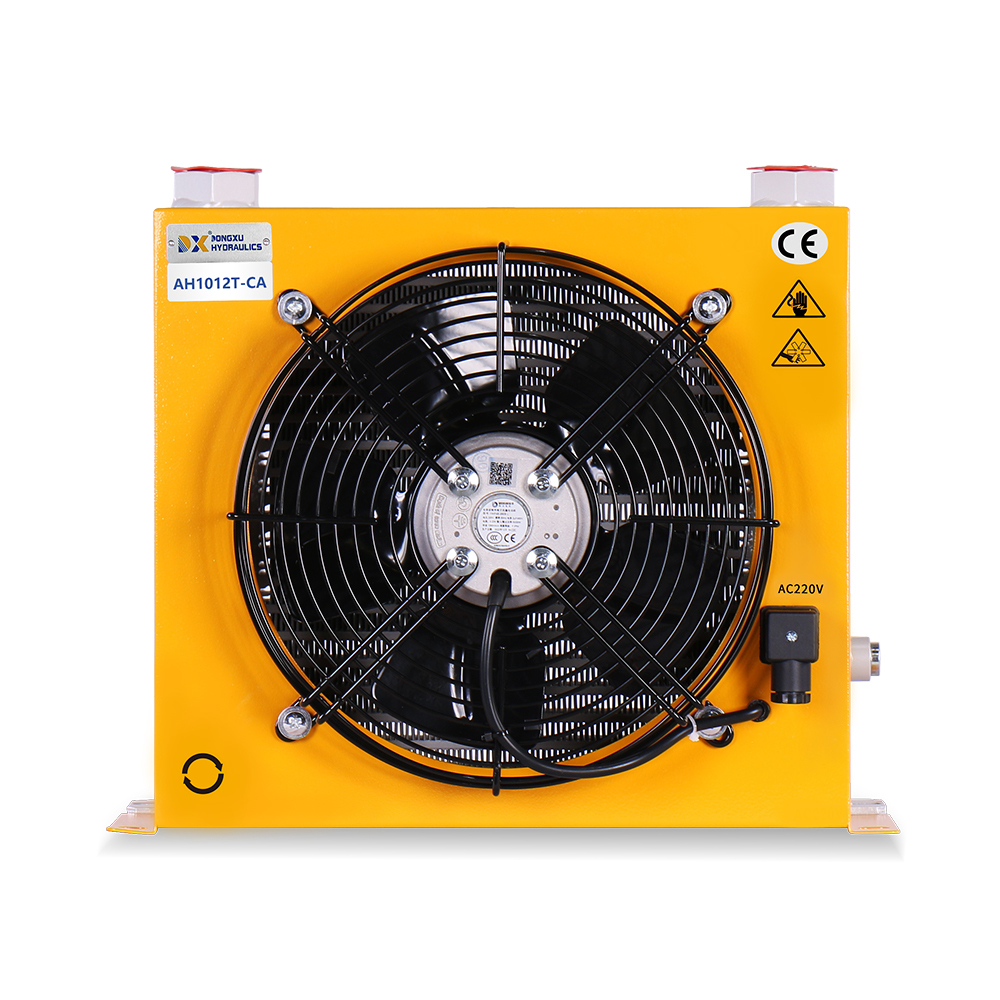

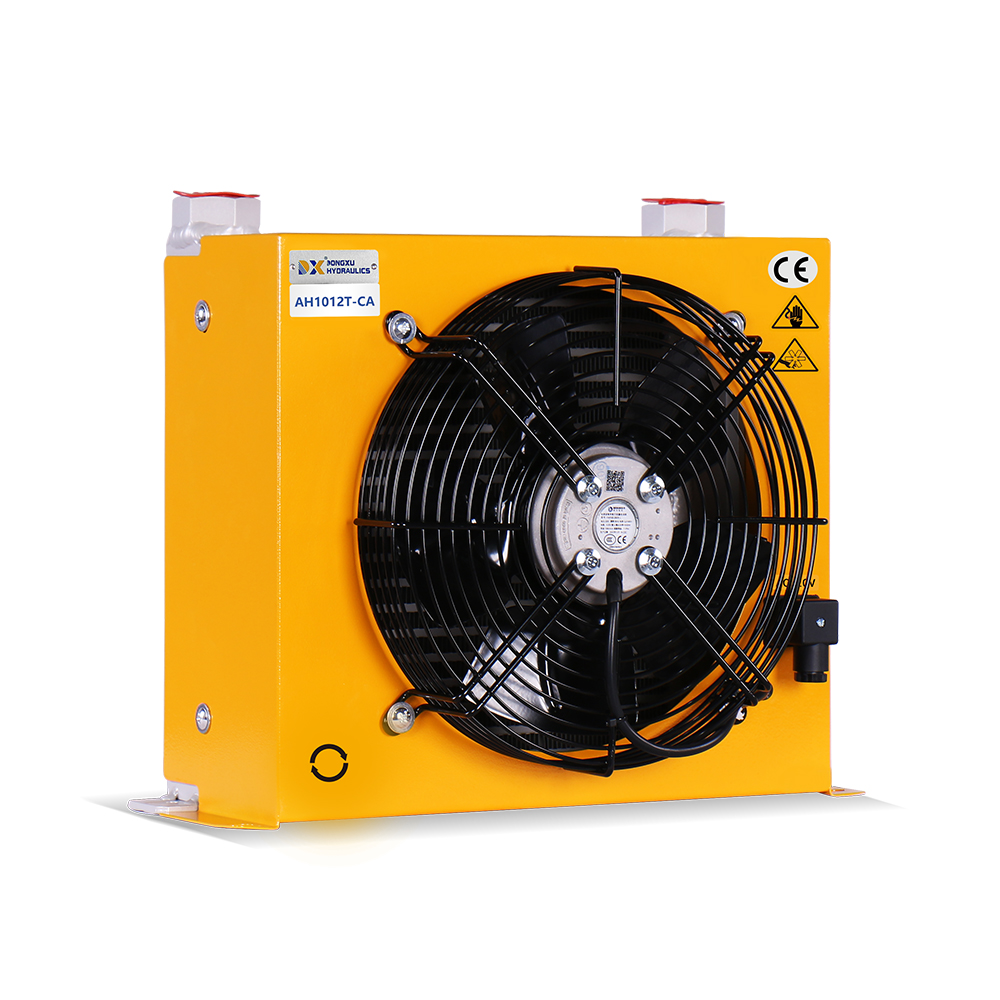

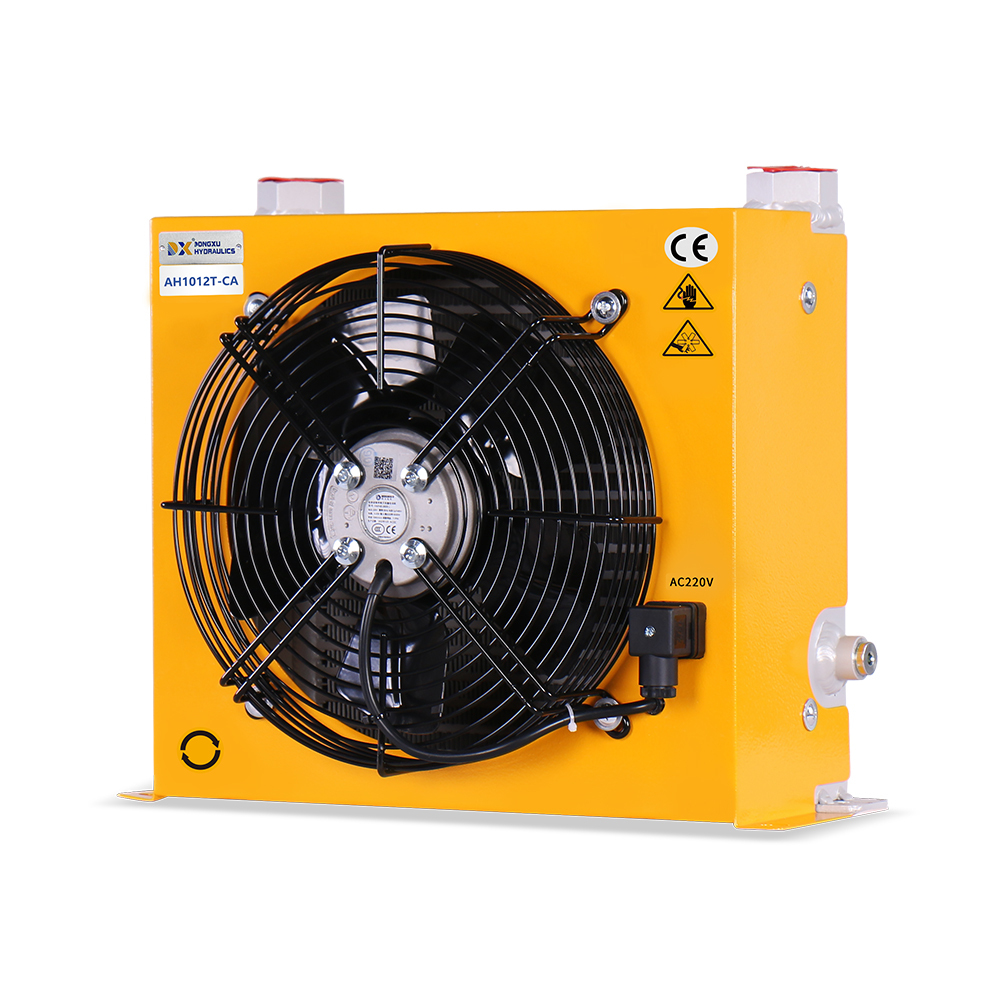

AH1012T-CA Aluminum Alloy Plate-Fin Air-Cooled Oil Cooler, suitable for heat dissipation in small hydraulic power units for construction machinery

Product Specification

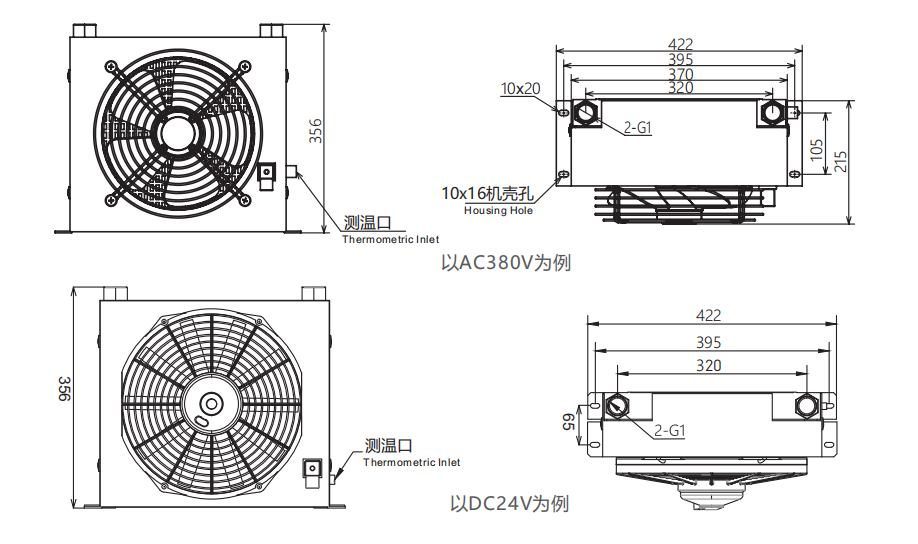

Dimensions

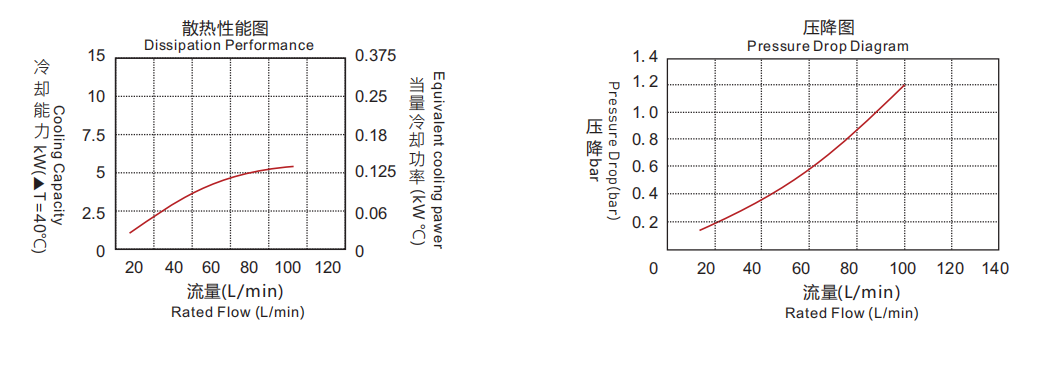

Performance

Features

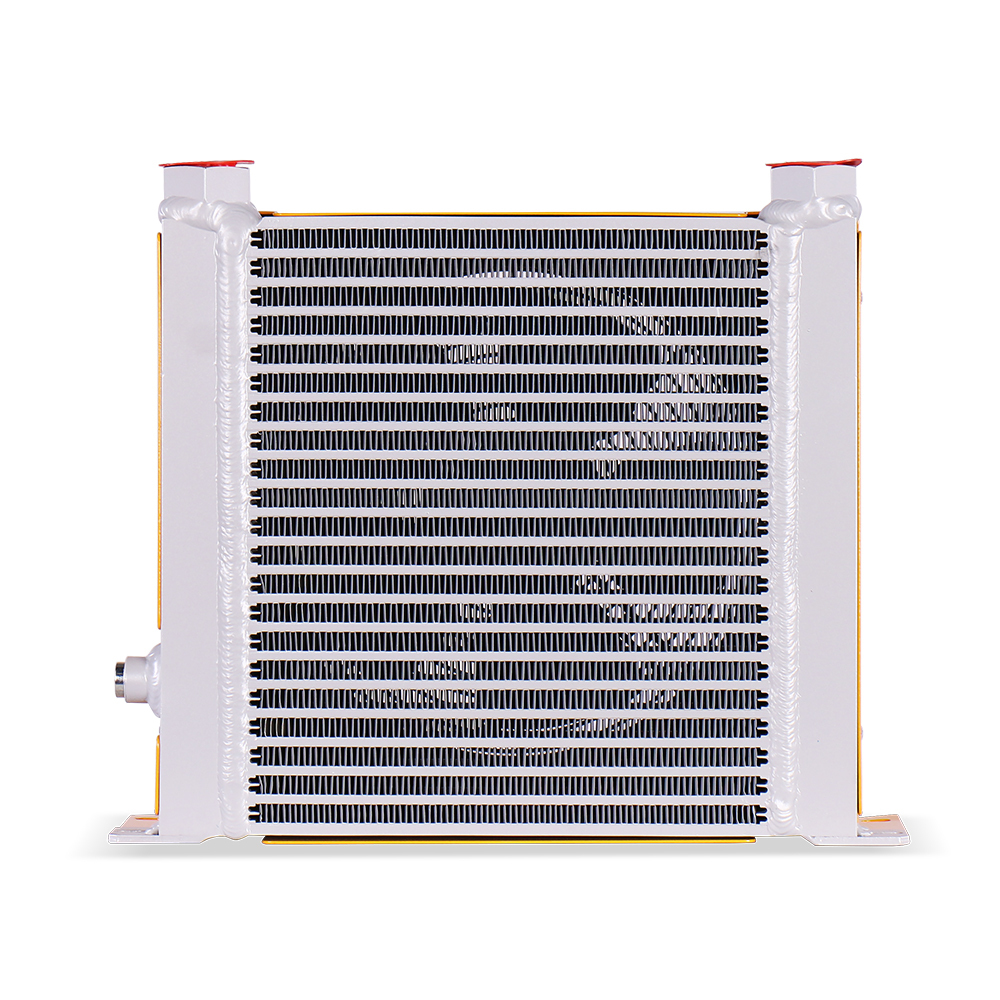

1. High Efficiency – Plate-fin aluminum cooling core with vacuum brazing technology, offering 10-20 times higher heat exchange efficiency than traditional copper tube designs.

2. Compact Design – Small footprint and light weight (only 10kg), easy to install and maintain.

3. Multiple Voltage Options – Supports AC 380V/220V and DC 12V/24V, compatible with power standards in different countries.

4. Low Noise Operation – Optimized fan design ensures smooth and quiet operation.

5. No Water Required – Fully air-cooled, no cooling water needed, simple maintenance.

Applications

• Injection molding machine hydraulic oil cooling

• Small hydraulic power unit return oil cooling

• Machine tool lubricating oil cooling

• Construction machinery hydraulic systems

• Gearbox lubricant cooling



  Injection Molding Machine Hydraulic Oil Cooling

  In injection molding production environments, precise temperature control of hydraulic oil is essential to ensure consistent machine operation and product quality. The AH1012T-CA air cooled oil cooler functions as a critical component by maintaining oil temperatures within optimal ranges, preventing overheating that could damage internal components. Its robust aluminum plate-fin core and effective cooling fan provide efficient heat dissipation without water usage, thus streamlining hydraulic cooling workflows. This oil cooler integrates seamlessly with molding machine hydraulic circuits, enhancing system reliability and reducing downtime.


  Construction Machinery Hydraulic System Cooling

  Within construction machinery operations, hydraulic systems are exposed to high pressures and variable ambient conditions that demand durable cooling solutions. The AH1012T-CA hydraulic oil cooler is engineered to withstand these stresses with its sturdy protective frame and vibration-resistant build. It provides effective cooling at rated flows up to 100 L/min and pressures up to 2.0 MPa, aligning with the demands of hydraulic pumps and valves in excavation and earthmoving equipment. By delivering air-cooled cooling capability without the need for water, it reduces complexity on-site and ensures continuous operation in rugged outdoor environments.



Packaging & Delivery

• Secure Transit: Shipped in specialized, reinforced industrial-grade packaging to protect the heat exchanger fins and fan assembly during global transit.

• Efficient Logistics: Factory-direct fulfillment from our production hubs, ensuring rapid lead times for both standard and custom configurations.

• Export-Ready: Fully documented for international logistics, ensuring compliance with global customs and safety standards.



• International Certification: CE Marked for European quality and safety compliance.

• Quality Management: Manufactured under strict ISO9001, ISO14001, and ISO10012 quality management protocols.

• Long-Term Performance: Engineered for a product lifespan of up to 10 years+, offering unmatched value and reliability.

• Rigorous Testing: Every unit undergoes high-pressure leakage and performance testing to ensure zero-failure operation.


The MEISON Advantage

• Factory-Direct Expertise: "Factory-Direct Expertise. Professionally Curated." — We provide over 20 years of manufacturing excellence directly from our production centers.
• Global Trust: With over 1,000,000 units sold to 6,000+ customers worldwide, we are a global leader in hydraulic fluid control.
• R&D Excellence: Innovation-driven, with 60+ patents and strategic research partnerships ensuring our coolers remain at the cutting edge of thermal management.
• Cinematic Industrial Image: Every product is crafted to project technical authority and precision, designed to build immediate trust with your international B2B customers.

Product FAQs

Q1：How to select the correct air cooler size for my hydraulic system?
A1: You need to calculate the heat dissipation capacity (Pv) . Please provide us with: 1) Motor power (kW), 2) Desired oil temperature, 3) Ambient temperature, 4) Tank volume. We will calculate the required cooling power (W/℃) for you for free.

Q2：Can an air-cooled oil cooler be installed horizontally?

A2: Yes, but it is recommended to install it with the fan facing upward or with horizontal airflow. Avoid installing it with the oil port facing downward to prevent the accumulation of contaminants. Please refer to the product manual for specific installation instructions.

Q3: How can I tell if an air-cooled oil cooler needs cleaning?

A3: If the temperature difference between the inlet and outlet air decreases significantly, the outlet air temperature rises, or the oil temperature remains consistently high, the aluminum fins may need to be cleaned. We recommend using compressed air for backflushing or a specialized cleaning agent.

Q4: What are the space requirements for installing an air-cooled oil cooler?

A4: To ensure efficient heat dissipation, we recommend the following: ① Keep the air intake at least 300 mm away from obstacles; ② Keep the air outlet at least 400 mm away from walls or equipment; ③ When installing multiple units side by side, maintain a spacing of at least 200 mm between them or arrange them in a staggered pattern; ④ Avoid hot air recirculation (e.g., by directing the air outlet toward the air intakes of other equipment).
