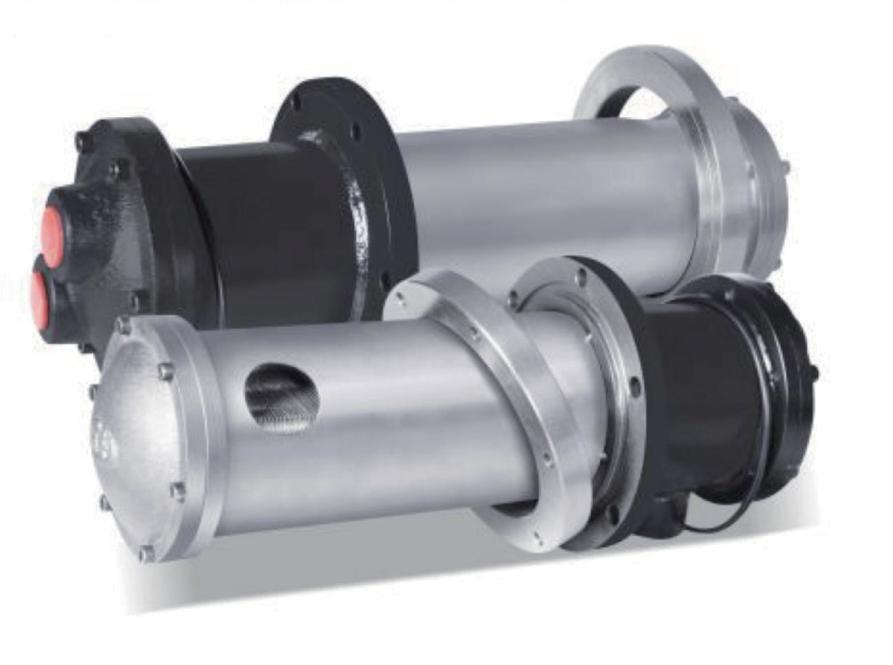

DX SERIES OFFERS SEMI-INSERTED COOLING OPTIONS
(0 Reviews)
0 Sold
$0.00
1/1
Product description

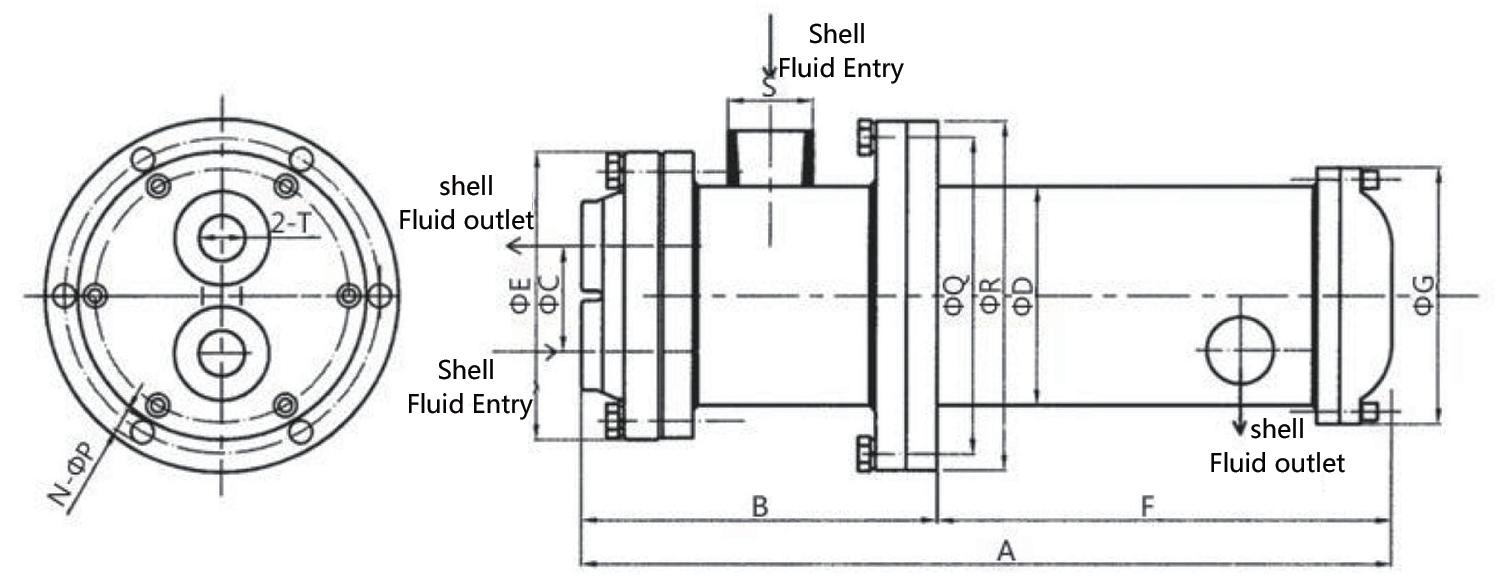

Product size drawing
Type parameter list
| Model NO | A | B | C | φD | φE | F | φG | N-φP | φR | φQ | S | T | Cooling Area (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX-105 | 453 | 150 | 45 | 89 | 120 | 303 | 120 | 6-M8 | 176 | 152 | Rc1" DC20 | Rc¾" | 0.5 |
| DX-107 | 597 | 150 | 45 | 89 | 120 | 447 | 120 | 6-M8 | 176 | 152 | Rc1" DC20 | Rc¾" | 0.7 |
| DX-109 | 741 | 150 | 45 | 89 | 120 | 591 | 120 | 6-M8 | 176 | 152 | Rc1" DC20 | Rc¾" | 0.9 |
| DX-208 | 469 | 173 | 60 | 114 | 150 | 396 | 150 | 8-M8 | 208 | 182 | Rc1¼" DC32 | Rc¾" | 0.8 |
| DX-211 | 613 | 173 | 60 | 114 | 150 | 440 | 150 | 8-M8 | 208 | 182 | Rc1¼" DC32 | Rc¾" | 1.1 |
| DX-215 | 757 | 173 | 60 | 114 | 150 | 584 | 150 | 8-M8 | 208 | 182 | Rc1¼" DC32 | Rc¾" | 1.5 |
| DX-218 | 901 | 173 | 60 | 114 | 150 | 728 | 150 | 8-M8 | 208 | 182 | Rc1¼" DC32 | Rc¾" | 1.8 |
| DX-309 | 494 | 200 | 75 | 139 | 180 | 294 | 180 | 8-M10 | 234 | 214 | Rc1½" DC40 | Rc1" | 0.9 |
| DX-318 | 638 | 200 | 75 | 139 | 180 | 438 | 180 | 8-M10 | 234 | 214 | Rc1½" DC40 | Rc1" | 1.8 |
| DX-322 | 746 | 200 | 75 | 139 | 180 | 546 | 180 | 8-M10 | 234 | 214 | Rc1½" DC40 | Rc1" | 2.2 |
| DX-326 | 854 | 200 | 75 | 139 | 180 | 654 | 180 | 8-M10 | 234 | 214 | Rc1½" DC40 | Rc1" | 2.6 |
| DX-330 | 962 | 200 | 75 | 139 | 180 | 762 | 180 | 8-M10 | 234 | 214 | Rc1½" DC40 | Rc1" | 3.0 |
| DX-334 | 1070 | 200 | 75 | 139 | 180 | 870 | 180 | 8-M10 | 234 | 214 | Rc1½" DC40 | Rc1" | 3.4 |
